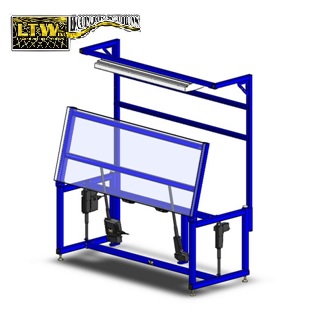

E2 Tilt Workstation
Adjust both the height and the tilt of your work with the LTW E2 Tilt Workstation, powered by industrial electric actuators.
The electric height adjustability and tilting tabletop on the E2 Tilt Workstation improves visibility and accessibility for detailed industrial work like assembly and inspection.
In choosing both their perfect working height and angle, people are able to work with higher comfort, productivity, and accuracy.
Height Adjustment + Tilt Adjustment
The LTW E2 Tilt Workstation features both overall height adjustability and tabletop tilt adjustability. With the simple push of buttons, the LTW industrial electric actuator system enables each operator to select their perfect working height and angle for each task.
Never stay confined to using the workstation for just one task. LTW’s modular overhead frame enables modification of the workstation for unlimited uses. Add on necessary options and accessories with structural aluminum t-slots at any point.
Common E2 Tilt Workstation Uses
Manufacturing Assembly Stations: Height adjustment allows people to maintain proper working posture during repetitive assembly tasks.
Electronics and Precision Assembly: Fine assembly work often requires precise ergonomic positioning to reduce operator fatigue.
Inspection Workstation: Increase inspection accuracy with improved inspector comfort and access to components and testing tools. Check out our Visual Inspection Workstation for specific inspection equipment.
Packing & Shipping: Pack orders and prepare for shipment at a comfortable height and angle. See also our GTR General Tilt Roller Stand for tilted box packing with rollers for quick box movement.
Why is height and angle adjustability important?
When people can’t do their job at a comfortable position, they can quickly experience burnout and injury. This leads to time off the job, employee turnover (with costs often ranging from 40% to 200% of the employee’s annual wages!), and reduced productivity.
In selecting their own perfect working height and angle, even for a particular task and changing it for the next, people can experience less fatigue and risk of injury, while working more efficiently, comfortably, and productively. This particularly benefits people using workstations and workbenches, as reaching for parts and tools on the back overhead frame can be done ergonomically.
With LTW’s industrial height adjustable workstations, organizations receive all these ergonomic and safety benefits without annoying ongoing maintenance. The heavy duty LTW electric actuator system is highly reliable, making a long-term and dependable addition to your workplace.
FAQ
Q: How much weight can the E2 Workstation tilt?
A: The standard LTW E2 Tilt Workstation has a tabletop tilt capacity of 300lb (central static load).
Need more tilt capacity? We can add more electric actuators! Mention your lift capacity needs in your quote request and an ergonomics expert will help you find the perfect solution for your application.
Q: Can I customize the E2 Tilt Workstation?Â
A: Yes! If we don’t currently offer a task-specific workstation that fits your needs (like our Visual Inspection Workstation, Packing and Shipping Workstations, or workstations with docking trolleys), let us know in your quote request what features you need. Not sure what you need? We can help with that too!
Standard Features
- Electric Actuator Motor Stroke: 8″ or 12″
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Dimensions: From 24″ W x 24″ D to 96″ W x 30″ D
- Minimum Lowered Height Options
- With Leveling Feet: 31″
- With 5″ Swivel Lock Casters: 35″
- Heights are based on using LTW’s 12″ motor. When using LTW’s 8″ motor, the above heights are 4″ shorter.
- Your chosen height can be anything equal to or above the given minimum heights!
- Welded Frame Construction: Heavy Duty 2″ x 7 Gauge Welded Square Tube Steel
-  Optional 3″ Tube Steel Frames on our EH2
- Recessed Table Mounts with 5/16-18 tapped holes
- Floor Contact: 5″ Swivel Locking Casters or Floor Levelers
- Lift Capacity: 1100lb Central Static Load Lift Capacity, 300lb Tilt Capacity
- Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
- Overhead Frame: Modular Structural Aluminum
- Shipped Assembled and Ready to Use!
Patents: www.LTW1.com/patents
Customizable Options
- View all in detail at our LTW Product Accessories Page!
- Structural Aluminum Overhead Frame
- Table Tops: See Pictured Below
- Ergo Mats
- Tool Trolley Rail
- Tool Balancers
- Fan
- Shelves (Steel or SST)
- Parts Bin Bar
- Peg Board
- Power Outlet Strip
Tabletop Options
Maple Block Tabletop
Thickness: 1 3/4″
Characteristics: High durability, soft surface for protection of equipment, low maintenance
Great for: Light to heavy duty industrial applications
Laminate Tabletop
Thickness: 1 1/4″
Edging: Black with 3mm Radius
Color: See below image for available colors
Characteristics: Airtight seal, easy customization
Great for: Light to moderate duty industrial applications
Anti-Static Laminate Tabletop
Thickness: 1 1/4″
Edging: Black with 3mm Radius
Color: See below image for available colors
Characteristics: ESD anti-static, airtight seal, easy customization
Great for: Light to moderate duty industrial applications
Aluminum Tabletop
Thicknesses Available: 1/2″, 3/4″
Aluminum Specs: No sharp edges – beveled edges to 45 degrees
Blanchard Ground Steel Tabletop
Thicknesses Available: 1/2″, 3/4″, 1″
Stainless Steel Wrapped Particle Board Tabletop
Thicknesses Available: 1.625
Characteristics: Easy sterilizing
Great for: Steril applications such as in clean rooms and labs
Standard Products
For the same industrial quality of LTW products that you love, at the best prices, choose from standard product models. If you need something customized, request a custom quote.
Have you seen these?
Check out some of our other industrial height adjustable solutions.
