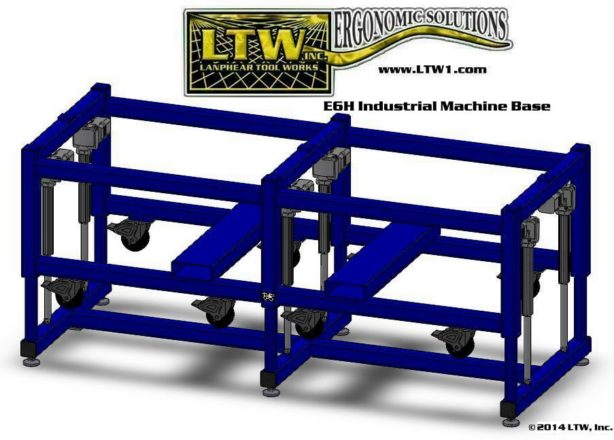

LTW, Inc. LTW Ergonomic Solutions E6H Ergo Industrial Base

LTW’s E6H Heavy Duty Industrial Machine and Fixture Bases are made to lift your heaviest machines and fixtures, up to 10,800lb.

Lifting your heaviest applications is as easy as pressing an electric button with the E6H Base. It can be customized to your specific size and lift capacity needs to take the weight off your hands, raising it with an industrial LTW base.

Customization and Discounts available. Request a quick quote today from an LTW Ergonomics Professional to find your price and other industrial ergonomic products in your budget!

Custom E6H Machine Base Quote

Quickly and safely adjust the height of your heavy applications.

The E6H is LTW’s largest machine base that features the highest weight lift capacity. With its impressive lift capacity comes dependable durability that is always expected with LTW products.

The E6H Bases featured in the images on this page are shown with our LC: Levelers & Casters technology. When the base has been fully lowered with the touch of a button, it rests on swivel locking casters so that it can be moved throughout your company. When the base has been wheeled to its desired place it can then be raised, automatically lifting its casters and resting floor levelers to the ground. This technology is ideal, especially when needing both stability and portability with weighty applications used on the E6H.

Request a quote below on this page or talk with one of our ergonomic specialists today to learn more about how the E6H can be used in your company and to start your process towards success in ergonomics with LTW. We look forward to hearing from you!

Impressive Standard Features

  • Electric Actuator Motor Stroke: 8″ or 12″
    • Quiet Electric Screw Drive Lift System
    • Soft Touch Button Motor Controller
  • Dimensions: Customizable for your heavy-duty project
  • Minimum Lowered Height Options
    • With Leveling Feet: 28″
    • With 5″ Swivel Lock Casters: 32″
    • Heights are based on using LTW’s 12″ motor. When using LTW’s 8″ motor, the above heights are 4″ shorter.
    • Your chosen height can be anything equal to or above the given minimum heights!
  • Welded Frame Construction: Heavy Duty 3″ x 7 Gauge Welded Square Tube Steel
    • 9 Table Mounts with 1/2-13 tapped holes are machined for flatness
  • Floor Contact: 5″ Swivel Locking Casters or Floor Levelers
    • E4H LC: Has both Heavy Duty Casters and Floor Levelers (pictured above)
  • Lift Capacity: Customizable for your heavy-duty project, up to 10,800lb
  • Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
  • Shipped Assembled and Ready to Use!


Customizable Options

  • View options in detail at our LTW Product Accessories Page!
  • Extra Heavy Duty Linear Actuators (10,800lb Lift Capacity)
  • Electrical Box Mounts
  • Fork Lift Tubes
  • Table Tops
    • Aluminum
    • Steel
    • Blanchard Ground Steel
    • More (See Quote Request Form below for more options!)
LTW, Inc. LTW Ergonomic Solutions E6H Ergo Industrial Base

Product Review

“The LTW team was on top of their game from the initial design to the delivered product. It was clear that LTW communicates promptly and professionally. Additionally, our team was happy to collaborate with the engineering team to come together for the best solution for our application.

“I may have touched upon my experience in my product review, but I will reiterate. The LTW team excels in customer service, and it shows up in the end product: a custom workstation with their customer’s exact needs in mind.”
– LTW Customer, E6 Base

Let us help you raise your level of ergonomics today!
