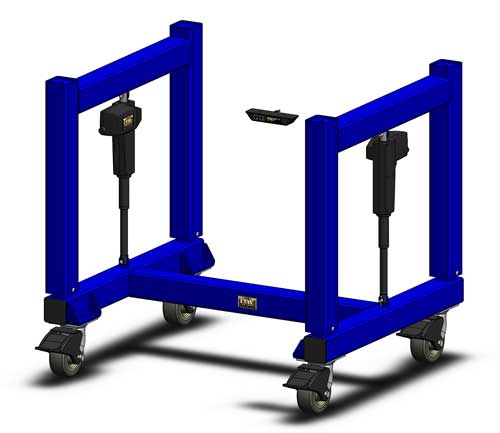

LTW’s E2H (Heavy Duty) Ergonomic Electric Adjustable Height Industrial Fixture & Machine Bases lift your heavier machines and fixtures, up to 1100lb.
LTW’s Patented E2H Ergonomic Bases feature industrial strength with a welded 3″ 7ga Square Steel Tubing frame.
Typical Price Range: $1,999-$4,399
Customization and Discounts available. Request a quick quote today from an LTW Ergonomics Professional to find your price and other industrial ergonomic products in your budget!
Why You Need It
The E2H Series has the same specs as our standard E2 Bases, with increased the square steel tube frame from 2″ to 3″ and upgraded the casters (or floor levelers) to lift up to 1100lbs. These bases are ideal for the following applications:
Heavy Assembly Fixtures
Heavy Duty Work Benches
The E2H might not lift more than the E2, but its larger steel tubing offers the added rigidity that some projects require.
Let us know your dimensions and options specifications and we will make it happen for you. From CAD design, to quote, to manufactured and at your facility in as little as 3-4 weeks. These ergonomic electronically adjustable height bases are designed and built to handle some of the toughest industrial environments!
Impressive Standard Features

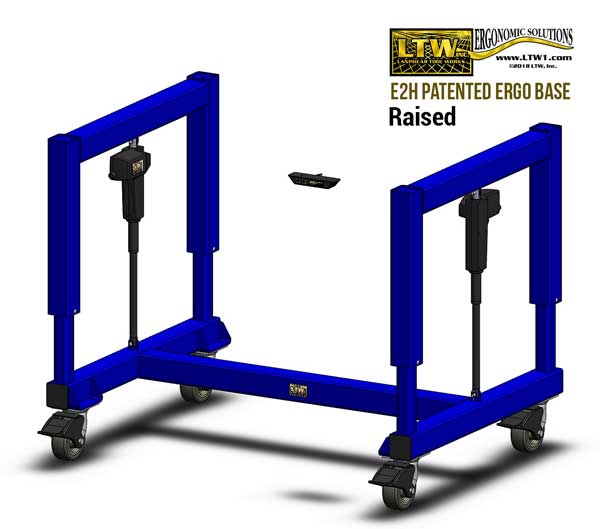

- Electric Actuator Motor Stroke: 8″ or 12″
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Dimensions: from 36” W x 36” D to 72” W x 36” D

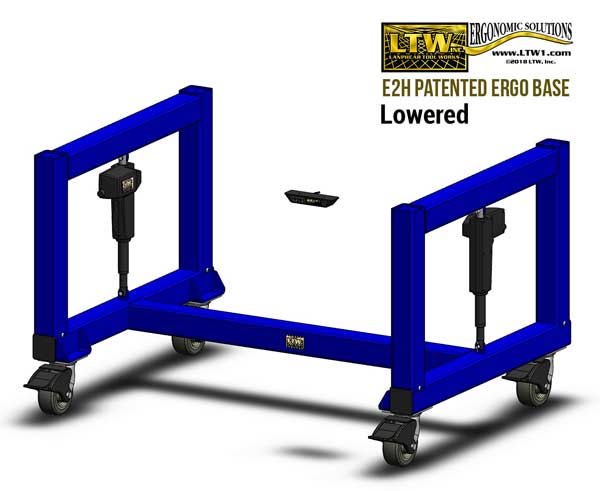

- Minimum Lowered Height
- With Leveling Feet: 28″
- With 5″ Swivel Lock Casters: 32″
- Heights are based on using LTW’s 12″ motor. If using LTW’s 8″ motor, the above heights are 4″ shorter.
- Your chosen height can be anything equal to or above the given minimum heights!

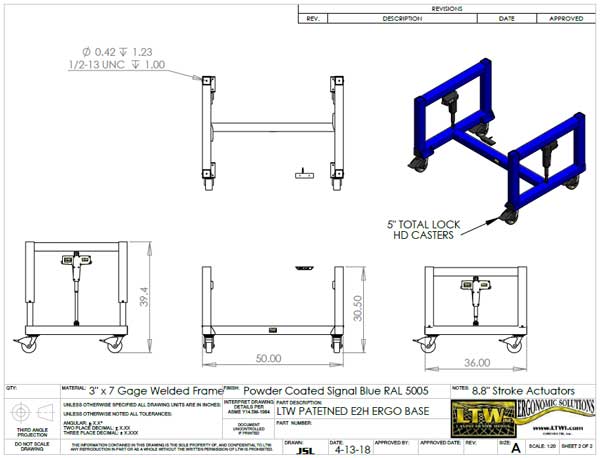

- Construction: Heavy Duty 3″ x 7 Gauge Welded Square Tube Steel
- Recessed Table Mounts with 1/2-13 tapped holes
- Floor Contact: 5″ Heavy Duty Locking Swivel Casters or Floor Levelers
- Load Capacity: 1100lb Central Static Load Lift Capacity (See our Weight Load Capacities page to find which table you need)
- Color: Powder Coated Signal Blue (Optional Custom Colors)
- Shipped Assembled and Ready to Use!
- Electrical Box Mounts
- Overhead Rail Mounts
- Fork Lift Tubes
- Footrest Bar
- Wood Table Top Mounts
- Table Tops
- Stainless Steel Wrapped Around Wood Core
- Blanchard Ground Steel
- Maple Block
- ESD Laminated for Anti Static Applications
- Interchangeable Battery Powered with Wall Mount Charger
- Custom Low Rider Configuration for shorter minimum heights – Contact LTW for more information on this option.
