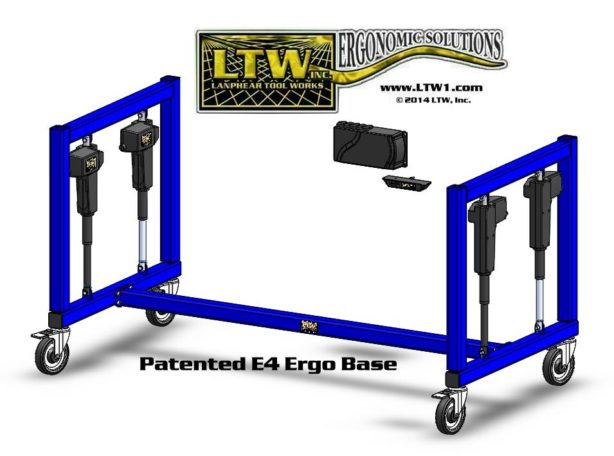

E4 Base
The LTW E4 Base adds industrial height adjustability to your heavy machines, lifting up to 2200lb!
LTW industrial height adjustable machine bases enable operators to adjust the height of heavy machines, industrial equipment, and other manufacturing tasks to their perfect working height. Increase productivity, efficiency, and work quality by adding industrial ergonomics to your workplace!
Industrial Height Adjustability

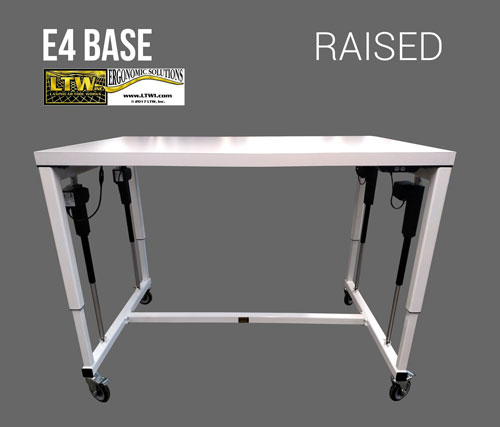

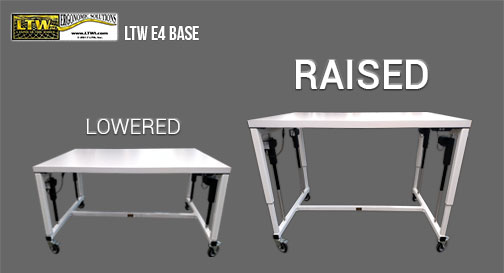

The LTW E4 Base is height adjustable with the simple push of a button. Our industrial electric actuator system features up to 12 inches of travel and 2200lb of lift, allowing operators to select their perfect working height for heavy machinery and tasks.
Unlike hydraulic lift systems, which can create dangerous leaks and fully collapse upon failure, LTW electric actuators safely and consistently lift the work, without any risk of leaking or collapsing.
Common E4 Base Uses
Machine Tending: Adjustable bases enable operators to choose their perfect working height for loading and offloading parts from heavy machinery.
Assembly Fixtures: Height adjustment allows people to maintain proper working posture during repetitive assembly tasks on heavy parts.
Why is height adjustability important?
Some manufacturing facilities start with using machines or fixtures mounted on fixed height bases. Since not every person is the same height, those cause problems:
- Operators bending or reaching excessively
- Poor posture during repetitive tasks
- Difficulty accommodating workers and projects of various heights
- Reduced productivity and increased fatigue
LTW’s height adjustable machine bases help prevent these issues by allowing operators to quickly set the correct working height for their task.
FAQ
Q: How much weight can the E4 Base lift?
A: The LTW E4 Base has a lift capacity of 2200lb (central static load) to support heavy industrial fixtures, machinery, and workstations with smooth electric height adjustment.
Need something smaller with less lift? Check out our E2 Base with up to 1100lb lift.
Need more lift or something larger? Check out our E6H Base, with customizable load capacity of 10,800lb+!

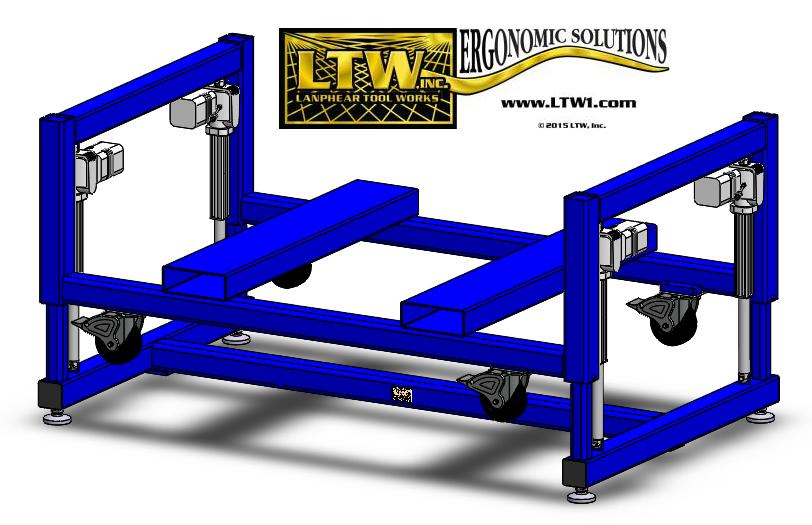

Q: Can I add the “LC” (levelers + casters) feature to an E4 Base?
A: Yes! In your quote request, select “LC: Leveling Feet + 5″ Casters” to add this feature (as described in detail on the E2LC Base page) to your E4 Base.
Standard Features
- Electric Actuator Motor Stroke: 8″ or 12″
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Dimensions: From 36” W x 36” D to 96” W x 48” D
- Need something larger? We can take a special look at your application to find a product that’s perfect for you.

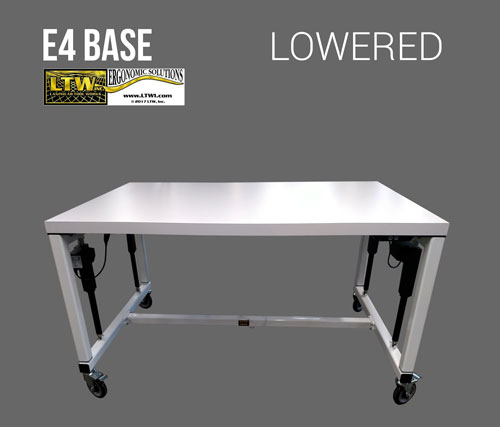

- Minimum Lowered Height Options
- With Leveling Feet: 28″
- With 5″ Swivel Lock Casters: 32″
- Heights are based on using LTW’s 12″ motor. When using LTW’s 8″ motor, the above heights are 4″ shorter.
- Your chosen height can be anything equal to or above the given minimum heights!
- Welded Frame Construction
- E4: 2″ x 7 Gauge Welded Square Tube Steel
- Recessed Table Mounts with 5/16-18 tapped holes
- E4H: Heavy Duty 3″ x 7 Gauge Welded Tube Steel
- E4H has 1/2-13 tapped holes
- Floor Contact: 5″ Swivel Locking Casters or Floor Levelers
- Lift Capacity: 2200lb Central Static Load Lift Capacity (See our Weight Capacities page to find which table you need)
- Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
- Shipped Assembled and Ready to Use!
Patents: www.LTW1.com/patents
Customizable Options
- View options in detail at our LTW Product Accessories Page!
- Extra Heavy Duty Electric Linear Actuators
- Electrical Box Mounts
- Overhead Rail Mounts
- Fork Lift Tubes
- Footrest Bar
- Wood Table Top Mounts
- Custom Low Rider Configuration
- Table Tops
- Aluminum
- Steel
- Stainless Steel wrapped around a wood core
- Blanchard Ground Steel
- Maple Block
- Laminated
- ESD Laminated for Anti Static Applications
E4H: Upgraded 3″ Steel Frame Option
For even more stability, choose the E4H (Heavy Duty) Table. Made with Heavy Duty 7 Gauge 3″ tube steel, as opposed to our standard 2″ steel, these industrial tables are built to handle heavy loads and thrive in harsh environments.
Workstation Overhead Frame Option
Need the features of an E4 or E4H, with the accessories of a workstation? An E4 or E4H Workstation offers heavy-duty strength for your workstation applications. If you’re interested, mention so in the “Additional Instructions” box of your quote request!
Standard Products
For the same industrial quality of LTW products that you love, at the best prices, choose from standard product models. If you need something customized, request a custom quote.
| E4 Bases | Price | Part Number | ||
|---|---|---|---|---|
 | E4 Base | 48"W x 30"D, Casters | $3,335.16 | E4-4830-12-BB-C5 | |
| E4 Base | 48"W x 30"D, Leveling Feet | $3,201.65 | E4-4830-12-BB-FL | |
| E4 Base | 60"W x 30"D, Casters | $3,377.14 | E4-6030-12-BB-C5 | |
| E4 Base | 60"W x 30"D, Leveling Feet | $3,243.63 | E4-6030-12-BB-FL | |
| E4 Base | 72"W x 30"D, Casters | $3,391.96 | E4-7230-12-BB-C5 | |
| E4 Base | 72"W x 30"D, Leveling Feet | $3,258.45 | E4-7230-12-BB-FL |
