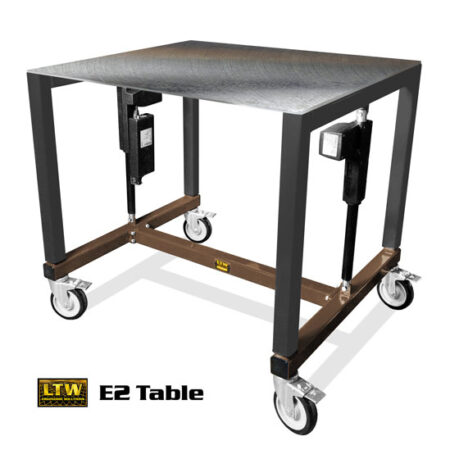

E2 Table
The LTW E2 Table is an industrial heavy-duty adjustable table designed for assembly and industrial work, lifting up to 1100lb with electric actuators.
LTW adjustable height industrial tables allow equipment, fixtures, and manufacturing tasks to raise and lower to the correct ergonomic height for different people and tasks. We help manufacturing teams reduce strain, improve workstation flexibility, and allow multiple operators to safely use the same equipment.
The Toughest Industrial Ergonomics
People of different heights are not able to work ergonomically at a single fixed height table. It’s too tall for some and too short for others.
The LTW E2 Table combines industrial strength with ergonomic height adjustability. This multipurpose table can accommodate various applications on its heavy-duty square tube steel frame.
Choose from various floor contact options, such as floor levelers and 5″ swivel locking casters as seen below. The floor levelers can offer increased fixed stability, while casters give you the freedom to easily lock the table into a fixed position and unlock to wheel wherever you’d like.
Common E2 Table Uses
Assembly Work: Height adjustment allows people to maintain proper working posture during repetitive assembly tasks.
Electronics and Precision Assembly: Fine assembly work often requires precise ergonomic positioning to reduce operator fatigue.
General Manufacturing Workstation: Add industrial ergonomics to your industrial workplace.
Why is height adjustability important?
Industrial workplaces often require physically demanding or repetitive tasks. Done at improper heights or angles, this can quickly lead to hazards like accidents, back pain, and time off the job.
LTW’s height adjustable industrial tables help to increase safety by enabling people to adjust their table to their perfect working height. This reduces the risk of musculoskeletal disorders and increases productivity, efficiency, and work quality.
FAQ
Q: What is an ergonomic industrial table?
A: An ergonomic industrial table allows operators to adjust the working height to reduce bending, reaching, and repetitive strain during manufacturing tasks.
Q: I need something larger or to lift more weight. What do you recommend?
A: Check out our E4 Table, lifting up to 2200lb and sized up to 96” W x 48” D. If you need something even bigger, check out our E6H Base, with customizable lift of up to 10,800lb+ and the size you need!
Standard Features
- Electric Actuator Motor Stroke: 8″ or 12″
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Dimensions: From 24″ W x 24″ D to 96″ W x 30″ D
- Minimum Lowered Height Options
- With Leveling Feet: 28″
- With 5″ Swivel Lock Casters: 32″
- Heights are based on using LTW’s 12″ motor. When using LTW’s 8″ motor, the above heights are 4″ shorter.
- Your chosen height can be anything equal to or above the given minimum heights!
- Need a shorter minimum height? See our LTW Low Rider products.
- Welded Frame Construction: Heavy Duty 2″ x 7 Gauge Welded Square Tube Steel
- Optional 3″ Tube Steel Frames on our EH2
- Recessed Table Mounts with 5/16-18 tapped holes
- Floor Contact: 5″ Swivel Locking Casters or Floor Levelers
- Lift Capacity: 1100lb Central Static Load Lift Capacity (See our Weight Load Capacities page to find which table you need)
- Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
- Shipped Assembled and Ready to Use!
Customizable Options
- Table Tops: See pictured below
- View options in detail at our LTW Product Accessories Page!
- Electrical Box Mounts
- Overhead Rail Mounts
- Fork Lift Tubes
- Footrest Bar
- Wood Table Top Mounts
- Interchangeable Battery Powered with Wall Mount Charger
- Custom Low Rider Configuration
- Make it into a Workstation or Assembly Bench
- Have Levelers and Casters by making it into our E2LC
- Optional 3″ Tube Steel Frames on our E2H
Patents: www.LTW1.com/patents
Tabletop Options
Maple Block Tabletop
Thickness Available: 1 3/4″
Characteristics: High durability, soft surface for protection of equipment, low maintenance
Great for: Light to heavy duty industrial applications
Laminate Tabletop
Thickness: 1 1/4″
Edging: Black with 3mm Radius
Color: See below image for available colors
Characteristics: Airtight seal, easy customization
Great for: Light to moderate duty industrial applications
Anti-Static Laminate Tabletop
Thickness: 1 1/4″
Edging: Black with 3mm Radius
Color: See below image for available colors
Characteristics: ESD anti-static, airtight seal, easy customization
Great for: Light to moderate duty industrial applications
Aluminum Tabletop
Thicknesses Available: 1/2″, 3/4″
Aluminum Specs: No sharp edges – beveled edges to 45 degrees

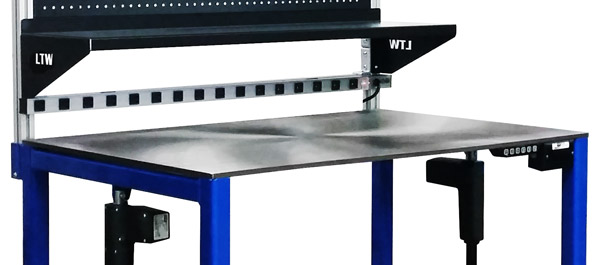

Blanchard Ground Steel Tabletop
Thicknesses Available: 1/2″, 3/4″, 1″

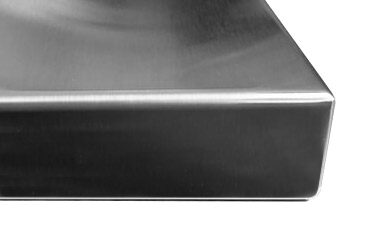

Stainless Steel Wrapped Particle Board Tabletop
Thicknesses Available: 1.625
Characteristics: Easy sterilizing
Great for: Steril applications such as in clean rooms and labs
