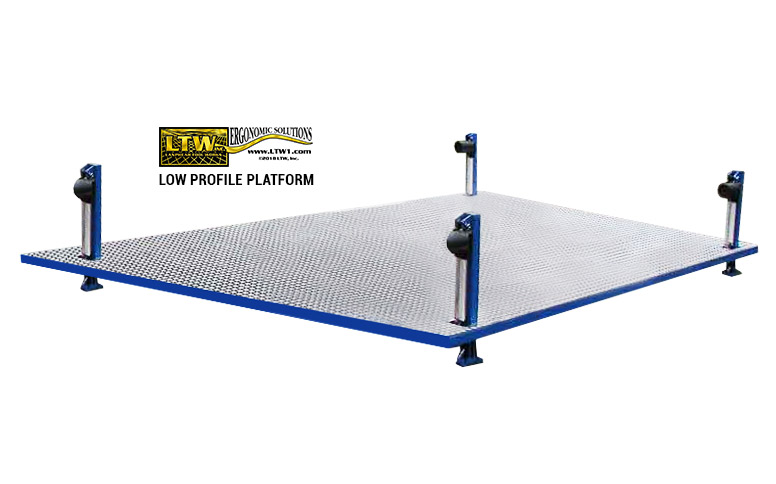

Low Profile Operator Platform
With a lowered height of 5″ from the ground and a raised height of 17″, LTW’s Low Profile Platform provides operator height adjustability for lower-height applications.
LTW’s electric actuator system enables operators of differing heights to work ergonomically at a single station, machine, or conveyor.
Typical Price Range: $5,879—$8,399+
Customization and Discounts available. Request a quick quote today from an LTW Ergonomics Professional to find your price and other industrial ergonomic products in your budget!
Add ergonomics to your large equipment
In many manufacturing facilities, machines are installed at a fixed height. This often forces shorter or taller workers to bend, reach, or work in awkward positions. LTW’s height adjustable operator platforms allow workers to set the correct height for safe and comfortable operation.
LTW Low Profile Operator Platforms easily raise the operator to their perfect working height with the simple touch of a button. All LTW products are designed and built to handle the toughest industrial environments, utilizing heavy duty steel frames and highest-quality electric actuators.
Common Operator Platform Uses
Distribution Centers: Add operator height adjustability to order processing and shipment tasks.
Conveyors: Instead of adjusting your entire conveyor system, add height adjustability to the operator.
Machine Tending: Adjustable operator platforms enable operators to choose their perfect working height for loading and offloading parts from machinery.
Assembly Line Workstations: Height adjustment allows people to maintain proper working posture during repetitive assembly tasks.
Packing: Operators can customize their platform height to the packing station and what is being packed.
Multi-Shift Manufacturing Environments: Accommodate people of differing heights who work at the same station on different shifts.
Why is height adjustability important?
The task of making one workspace fit a diverse workforce is challenging, and can sometimes seem impossible. LTW helps companies like yours provide safe environments for all of their employees, particularly considering their physical differences.
LTW’s height adjustable Operator Platforms help organizations accommodate people of varying heights by allowing them to adjust their height to their work. This significantly benefits business and the people using the platforms through reduced worker fatigue and time off the job, increased productivity, and higher quality of work.
FAQ
Q: Who is the Low Profile Platform for?
A: LTW Low Profile Operator Platforms are ideal for industrial workplaces where people need elevation to reach their work. Sometimes companies have already tried implementing fixed height platforms, and find that they don’t work for either their taller people or shorter people, and end up using unsafe makeshift solutions like step ladders or stools. Eliminate these issues with height adjustability!
Q: I need something shorter or taller. What do you recommend?
A: For shorter options, check out the Ultra Low Profile Operator Platform with a 2″ lowered height and the Chariot Personal Portable Lift with a 3″ lowered height.
For taller options, see the Fixed Steps Operator Platform with an 8″ lowered height, and the Adjustable Steps Operator Platform with a 14″ lowered height. Both the Fixed Steps and Adjustable Steps platforms can be customized to start at taller lowered heights. Use the Request a Quote form to get started!
Standard Features
- Electric Actuator Motor Stroke: 8″ or 12″
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Dimensions: Customizable, up to 72″ W x 72″ D (increased sizing available with further customization)
- Minimum Lowered Height: 5″ from Floor
- Welded Frame Construction: Heavy Duty 2″ x 7 Gauge Welded Square Tube Steel
- Optional 3″ Tube Steel
- Floor Plate: 1/8″ Steel Plate with Optional Ergo Matting
- Floor Contact: Floor Levelers and/or 5″ Swivel Locking Casters (Optional 2 rigid)
- Lift Capacity: 900lb Central Static Load Lift Capacity (Can be increased with customization)
- Color: Powder Coated Matte Black & Golden Bronze (Optional Custom Colors)
- Shipped Assembled and Ready to Use!
Customizable Options
- Do you need a platform with options different from the ones listed?
- Not a problem! Start by filling out the Quote Request Form below. In the “Additional Instructions,” write the general scope of your custom platform. An LTW Ergonomics Professional will reach out to you shortly to discuss the details.
Pressure-Sensitive ES Edges
LTW’s Enhanced Safety Edges help to protect your workplace against possible accidents. These pressure-sensitive strips are a standard feature, and are included on the bottoms of any open edge on an Ultra Low Profile LTW platform.
If an object accidentally finds itself under the edge of the platform, when the platform lowers and the ES Edge touches the object, the platform stops and retracts upwards (away from whatever the edge touched). LTW platforms are made to be used only when the operator has confirmed that the environment is safe for height adjustment, and these sensors help add safety in the event that something accidentally is left under the edge of the platform.

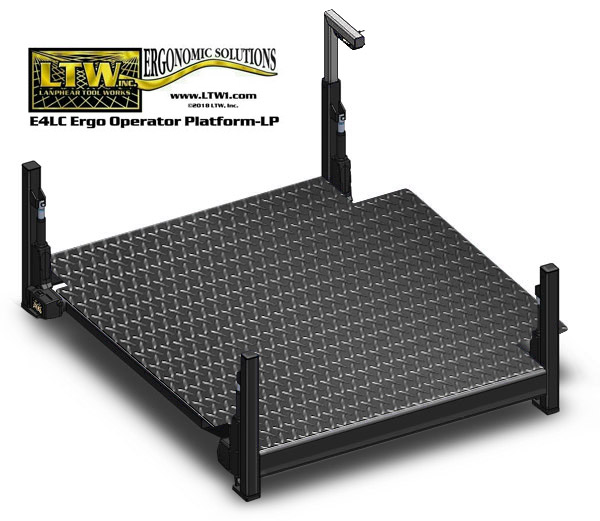

Showcased above is LTW’s Ultra Low Profile Platform, with a minimum height of 2″.
