E4 Ergo Pillar Kit
The bolt-on E4 Ergo Pillar Kit adds 2200lb of height adjustability to your fixed height tables, machines, and other industrial equipment.
For heavy, highly integrated systems with a need for little down time, bolting on height adjustability with an ergonomic retrofit kit can be a cost-effective and fast way to increase the safety of your industrial workplace.
In choosing their own perfect working heights, operators are able to work more comfortably, productively, and safely.
Add Height Adjustability to Fixed Height Equipment
The LTW E4 Ergo Pillar Kit makes your existing fixed height equipment height adjustable with the simple push of a button. The four industrial electric actuators provide up to 12 inches of travel and lift up to 2200lb, allowing operators to select their perfect working height for heavy equipment.

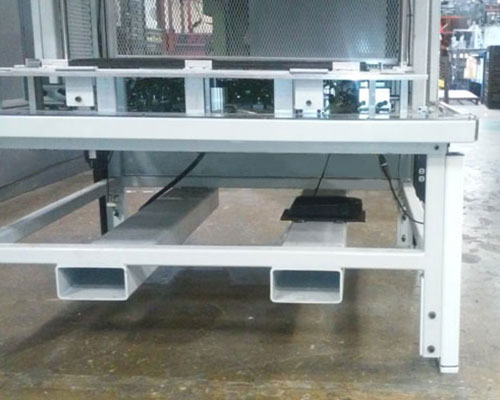

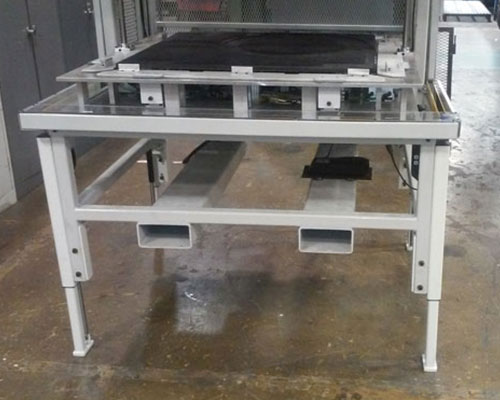

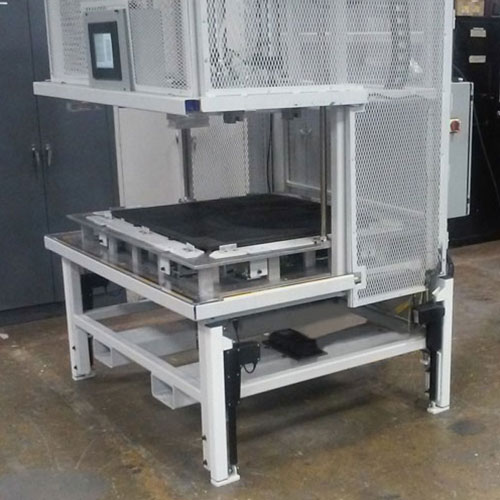

Installation is easy. Simply bolt the E4 Ergo Pillar Kit onto your table, workstation, machinery, or other industrial equipment, do a quick actuator sync process, and you’re ready to go. The speed and simplicity of this process makes it a great option for workplaces that require little to no downtime and need a fast ergonomic solution.
Common E4 Ergo Pillar Kit Uses
Large Machinery: Add height adjustability to large machinery with little down time.
Complex Systems: For highly integrated systems that do not need fully replaced, adding on height adjustability (rather than replacing the base with an E2 Base or E4 Base) can be a quick, cost-effective solution.
Fixed Height Tables & Workstations: For a fixed height industrial table or workstation that is in good condition, but needs height adjustability, bolt on the E4 Ergo Pillar Kit. Check out the E2 Table and E2 Workstation for dedicated, industrial grade, height adjustable solutions.
Why is height adjustability important?
Some manufacturing facilities start with using machines or fixtures mounted on fixed height bases. Since not every person is the same height, those cause problems:
- Operators bending or reaching excessively
- Poor posture during repetitive tasks
- Difficulty accommodating workers and projects of various heights
- Reduced productivity and increased fatigue
LTW’s height adjustable retrofit kits help correct these issues by allowing operators to quickly set the correct working height for their task.
FAQ
Q: How much weight can the E4 Ergo Pillar Kit lift?
A: The LTW E4 Ergo Pillar Kit has a standard lift capacity of 2200lb. Need more lift? Just include more Ergo Pillars, each lifting 550lb!
Q: Should I get a retrofit kit, or replace my fixed-height base or workstation with an adjustable one?
A: Upgrading to industrial, heavy duty height adjustable machine bases and workstations adds both industrial ergonomics and structural strength to your work. If your existing fixtures are structurally strong and high quality, and highly integrated with your applications, opting for a retrofit kit (like the E4 Ergo Pillar Kit on this page or the E2 Retrofit Kit) can be a way to quickly add height adjustability to your workplace.
Standard Features
- E4 (Four Pillar Option) – 2″ x 7 Gauge Welded Square Tube Steel
- Weight Capacity: 550lbs per 12″ column; x4 = 2200lb total
- Your Table Dimensions: From 36” W x 36” D to 96” W x 48” D
- E6 (Six Pillar Option) – 2″ x 7 Gauge Welded Square Tube Steel
- Weight Capacity: 550lbs per 12″ column; x6 = 3300lb total
- Your Table Dimensions: 48” W x 48” D and up; customizable to your project
- Height Adjustment
- 8″ Actuators – Pillar Height of 22″ with Leveling Feet
- 12″ Actuators – Pillar Height of 26″ with Leveling Feet
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
- Shipped Assembled and Ready to Use!
Customizable Options
- Floor levelers with anchor mounting holes
- Custom Mounting Flanges to fit your existing frame
Fast Installation, Minimal Down Time

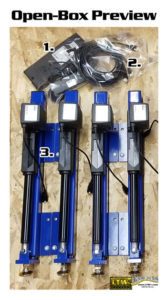

Each standard kit comes with the following parts for installation:
- Control Box & Hand Switch
- These can be attached wherever is best on your existing non-adjustable table or workstation
- Actuator Cables
- These connect the actuators on the “pillars” to the control box
- Actuators & Steel Pillars
- Our custom electric actuators work with industrial 2″ steel tubing to add heavy duty height adjustability to your previously non-adjustable tables.
All kits ship with these detailed installation and programming instructions.

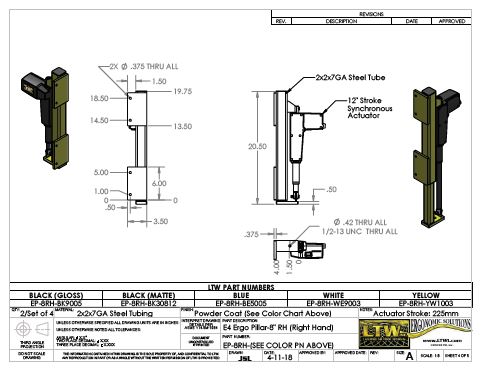

Downloadable Product Prints
Click the images below to view and download LTW’s PDF prints. The information in these prints is provided for reference only. See details here.
Customer Reviews
“The Ergo Pillar kit is working flawlessly. Will definitely keep you in mind for future projects.”
– Verified LTW Customer, E4 Ergo Pillar Kit
“Product works as described and has facilitated the equipment flexibility that we needed.”
– Verified LTW Customer, E4 Ergo Pillar Kit
“It works great for our machine and ergonomics.”
– Verified LTW Customer, E4 Ergo Pillar Kit & More
Standard Products
For the same industrial quality of LTW products that you love, at the best prices, choose from standard product models. If you need something customized, request a custom quote.
| E4 Ergo Pillar Kits | Price | Part Number | ||
|---|---|---|---|---|
 | E4 Ergo Pillar Kit | 26"H | $2,725.24 | E4EP-24.5-12-BB-FL |
