E6H Base
The LTW E6H Base adds industrial height adjustability to your large and heavy machines, with customizable lift of 10,800lb+!
Lifting your heaviest applications is as easy by pressing an electric button with the E6H Base. LTW’s time-proven industrial electric actuator system effortlessly adjusts the height of your heavy work in the most industrial environments.
Heavy Duty Height Adjustability
The E6H is LTW’s largest machine base that features the highest weight lift capacity, at 10,800lb or more, customizable to your individual needs. With its impressive lift capacity comes industrial, dependable durability.

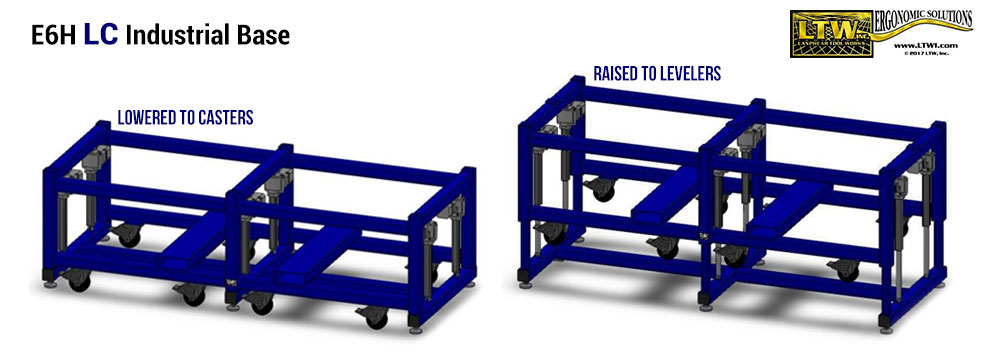

With our “LC” Levelers & Casters option, when the base is fully lowered with the touch of a button, it rests on swivel locking casters so that it can be easily moved. When the base has been wheeled to its desired place, it can then be raised, automatically lifting its casters and resting floor levelers to the ground. This technology is best when needing both stability and portability with heavy applications.
Common E6H Base Uses
Large Machine Tending: Adjustable bases enable operators to choose their perfect working height for loading and offloading parts from heavy machinery.
Assembly Fixtures: Height adjustment allows people to maintain proper working posture during repetitive assembly tasks on large, heavy parts.
Why is height adjustability important?
Some manufacturing facilities start with using machines or fixtures mounted on fixed height bases. Since not every person is the same height, those cause problems:
- Operators bending or reaching excessively
- Poor posture during repetitive tasks
- Difficulty accommodating workers and projects of various heights
- Reduced productivity and increased fatigue
LTW’s height adjustable machine bases help prevent these issues by allowing operators to quickly set the correct working height for their task.
FAQ
Q: How much weight can the E6H Base lift?
A: The LTW E6H Base can be customized to the lift capacity you need, with some opting for 10,800lb+ lift. Even with extreme loads, the LTW machine base maintains smooth electric height adjustment.
Need something smaller with less lift? Check out our E2 Base with up to 1100lb lift, or our E4 Base with up to 2200lb lift.
Q: Should I adjust the height of my operator instead?
A: It may be more cost-effective and easier to implement to lift the operator to their work, rather than adjusting the height of extremely heavy equipment. Check out our height adjustable Operator Platforms, and talk with an ergonomics professional about your application and what would be best.
Standard Features
- Electric Actuator Motor Stroke: 8″ or 12″
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Dimensions: Customizable for your heavy-duty project
- Minimum Lowered Height Options
- With Leveling Feet: 28″
- With 5″ Swivel Lock Casters: 32″
- Heights are based on using LTW’s 12″ motor. When using LTW’s 8″ motor, the above heights are 4″ shorter.
- Your chosen height can be anything equal to or above the given minimum heights!
- Welded Frame Construction: Heavy Duty 3″ x 7 Gauge Welded Square Tube Steel
- 9 Table Mounts with 1/2-13 tapped holes are machined for flatness
- Floor Contact: 5″ Swivel Locking Casters or Floor Levelers
- E4H LC: Has both Heavy Duty Casters and Floor Levelers (pictured above)
- Lift Capacity: Customizable for your heavy-duty project, 10,800lb+
- Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
- Shipped Assembled and Ready to Use!
Patents: www.LTW1.com/patents
Customizable Options
- View options in detail at our LTW Product Accessories Page!
- Extra Heavy Duty Linear Actuators (10,800lb Lift Capacity)
- Electrical Box Mounts
- Fork Lift Tubes
- Table Tops
- Aluminum
- Steel
- Blanchard Ground Steel
- More (See Quote Request Form below for more options!)
