E2 Retrofit Kit
The bolt-on E2 Retrofit Kit adds 1100lb of height adjustability to your fixed height tables, machines, and other industrial equipment.
For highly integrated systems with a need for little down time, bolting on height adjustability with an ergonomic retrofit kit can be a cost-effective and fast way to increase the safety of your industrial workplace.
In choosing their own perfect working heights, operators are able to work more comfortably, productively, and safely.
Add Height Adjustability to Fixed Height Equipment

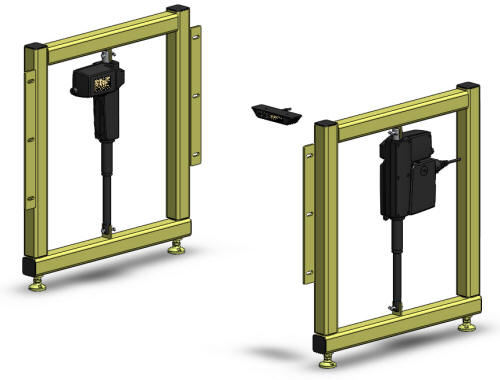

The LTW E2 Retrofit Kit makes your existing fixed height equipment height adjustable with the simple push of a button. Our industrial electric actuator system the features up to 12 inches of travel, allowing operators to select their perfect working height.
Installation is easy. Simply bolt the E2 Retrofit Kit onto your table, workstation, machinery, or other industrial equipment, do a quick actuator sync process, and you’re ready to go. The speed and simplicity of this process makes it a great option for workplaces that require little to no downtime and need a fast ergonomic solution.
Common E2 Retrofit Kit Uses
Large Machinery: Add height adjustability to large machinery with little down time.
Complex Systems: For highly integrated systems that do not need fully replaced, adding on height adjustability (rather than replacing the base with an E2 Base or E4 Base) can be a quick, cost-effective solution.
Fixed Height Tables & Workstations: For a fixed height industrial table or workstation that is in good condition, but needs height adjustability, bolt on the E2 Retrofit Kit. Check out the E2 Table and E2 Workstation for dedicated, industrial grade, height adjustable solutions.
Why is height adjustability important?
Some manufacturing facilities start with using machines or fixtures mounted on fixed height bases. Since not every person is the same height, those cause problems:
- Operators bending or reaching excessively
- Poor posture during repetitive tasks
- Difficulty accommodating workers and projects of various heights
- Reduced productivity and increased fatigue
LTW’s height adjustable retrofit kits help correct these issues by allowing operators to quickly set the correct working height for their task.
FAQ
Q: How much weight can the E2 Retrofit Kit lift?
A: The LTW E2 Retrofit Kit has a lift capacity of 1100lb (central static load). Need more lift? Check out our E4 Ergo Pillar Kit, with a standard 2200lb lift (or just add more Ergo Pillars if even more lift is needed!).
Q: Should I get a retrofit kit, or replace my fixed-height base or workstation with an adjustable one?
A: Upgrading to industrial, heavy duty height adjustable machine bases and workstations adds both industrial ergonomics and structural strength to your work. If your existing fixtures are structurally strong and high quality, and highly integrated with your applications, opting for a retrofit kit (like the E2 Retrofit Kit on this page or the E4 Ergo Pillar Kit) can be a way to quickly add height adjustability to your workplace.
Standard Features
- Equipment Compatibility
- Bolts to any non-adjustable table, workbench, or machine from 24″W x 24″D to 96″W x 30″D
- For larger tables, use our E4 Ergo Pillar Kit
- Actuators
- 8.8″ Actuators – 24″ minimum lowered height
- 12″ Actuators – 28″ minimum lowered height
- Quiet Electric Screw Drive Lift System
- Soft Touch Button Motor Controller
- Construction: Heavy Duty 2″ x 7 Gauge Welded Square Tube Steel
- Floor Contact: Leveling Feet
- Standard Lift Capacity: 1100lb Central Static Load Lift Capacity with Two Actuators (Upgrade to Four Actuators for 2200lb Lift Capacity)
- Mounting: 1/4″ Thick Steel Mounting Flanges
- Color: Powder Coated Matte Black with Bronze (Optional Custom Colors)
- Shipped Assembled and Ready to Use!

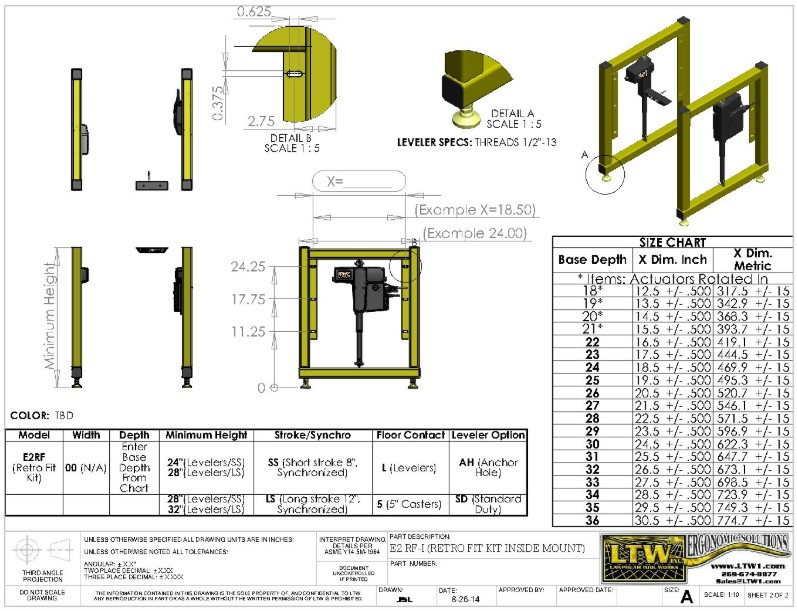

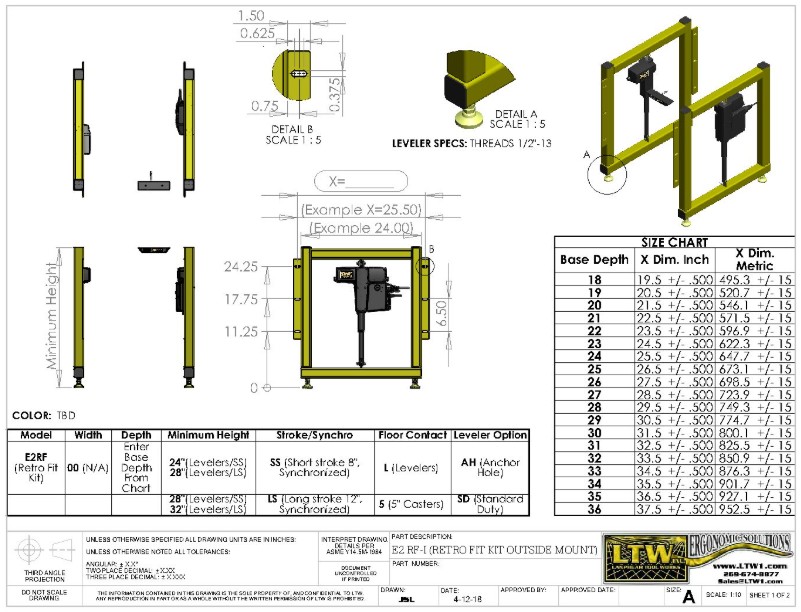

Downloadable Product Prints
Click the images below to view and download LTW’s PDF prints, referencing the Size Charts included in each to find the E2 Retrofit Kit for your application.
The information in these prints is provided for reference only. See details here.
Customer Reviews
“The lift table fit our application very well. It appears to be a quality made product that serves our needs.”
– Verified LTW Customer, E2 Retrofit Kit
“We have ordered a few bases and Retrofit Kits and they have always functioned and preformed as expected. Delivery has always been as stated or sooner.”
– Verified LTW Customer, E2 Retrofit Kit & More
